Product Details
Y2-E78A

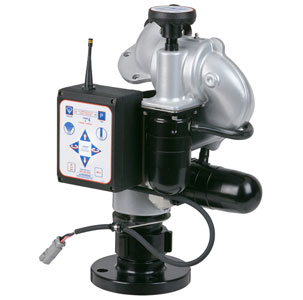

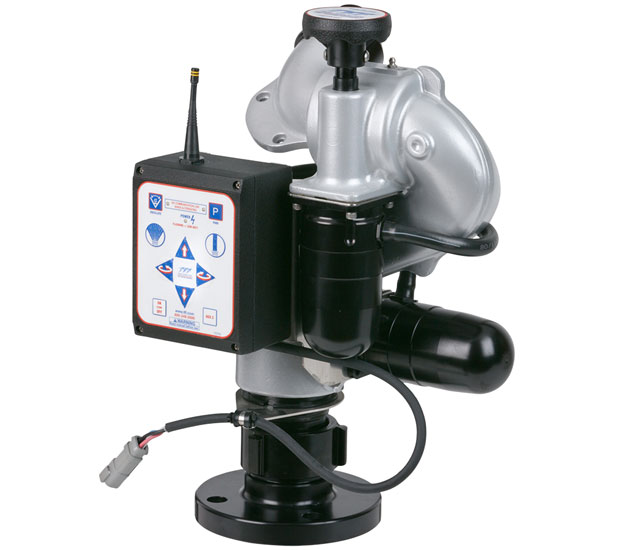

TORNADO RC 2.5"NPT FEMALE INLET


Part No:Y2-E78A


  Details
TORNADO RC 2.5"NPT FEMALE INLET 1.5" SPECIAL MALE OUTLET ALUMINUM
Rated up to 500 gpm, the Tornado is a remotely controlled truck mounted monitor with electric remote control of rotation and elevation angle and nozzle pattern. The electric motor shall provide elevation control from 90° above horizontal to 45° below horizontal. The unit shall have an electronically operated 370° horizontal rotational travel, user installed travel limit stops, stainless steel worm gear drive with manual override knobs, and shall have grease zerk fittings for easy service and lubrication. User operation controls shall be mounted on the monitor, and shall include rotation, elevation, and nozzle stream pattern control programmable park and oscillate and two auxiliary controls. Optional remote wired, tethered and wireless remote controls shall be available. The discharge elbow shall include an integral stream straightener. The monitor shall be constructed of hard coat anodized aluminum alloy and shall have a silver powder coat finish inside and out. Various flange and threaded inlets including locking quick connect shall be available (specify). Unit shall have serial number and a 5-year warranty.

Weight: 28 lbs (0 kg)

Monitor Configuration Fixed Mount
Flow Rate - Monitors 0-500 gpm (0-2000 l/min)
Operation Energy Source Electric (12/24 vdc)
Monitor Inlet 2.5 Inch-8 NPT Female
Monitor Outlet 1.5" SPL Male
Horizontal Control Handwheel (3 Inch, Injection Molded Nylon)
Horizontal Movement (degrees) 185 degrees left and right of center
Vertical Control Handwheel (3 Inch, Injection Molded Nylon)
Vertical Movement (degrees) 45 below to 90 above horizontal
Safety Shutoff No Safety Shutoff
Pressure Relief Valve No PRV
Valve Design No Valve
Finish Powdercoated Stardust Silver
Certifications CE
Hazardous Location Certification N/A


     Related Videos
    Programming Park Function on Monitors

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Programming An Oscillate Pattern on Monitors

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Tornado Monitor

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Electrical Monitor Motor Board Troubleshooting

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Manually Testing RC Monitor Control Inputs

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Testing RC Monitor Base Board for Power

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE





PRODUCT SERIES OVERVIEW
•   The Tornado Monitor is the ideal choice for a manual or remote control monitor for apparatus front bumper applications or industrial fixed system installations. With a maximum flow rating of 500gpm, the Tornado monitor series can be configured with a wide choice of nozzles and an integrated stainless shut off valve.
•   The Tornado Monitor is designed with quick connect fittings for easy removal when servicing apparatus as well as your choice of joystick, toggle switch, tether, or RF controller. All RC controlled nozzles incorporate TFT’s unique Smart Stream Technology that prevents unintended water flow during pattern selection.
•   The Tornado Monitor is manufactured from lightweight high strength aluminum alloy that has been hard coat anodized and powder coated for ultimate corrosion protection. All electronics in the remote control models, including the hazardous location ATEX versions, are designed for reliable operation in rugged fireground environments.
