Z1223A |
PROTECTOR-RED-NO VALVE-4"ANSI150 |
Part No:Z1223A

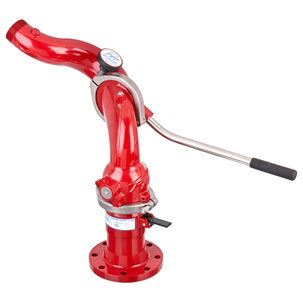

PROTECTOR-RED-NO VALVE-4"ANSI150 2.5"-11 NPSH ALUMINUM Protector monitor without on/off valve and with 2.5" (65mm) threaded exit. 1250 gpm (4500 l/min) rating. See chart to obtain model number for specific inlet and outlet options.
Weight: 31.75 lbs ( kg)
|
|
|
|
Monitor Configuration |
Fixed Mount |
Flow Rate - Monitors |
Flow up to 1250gpm |
Operation Energy Source |
Manual |
Monitor Inlet |
4 Inch ANSI 150 |
Monitor Outlet |
2.5 Inch NPSH Male |
Horizontal Control |
Tiller Bar with Lever Action Rotational Lock |
Horizontal Movement (degrees) |
Continuous 360 |
Vertical Control |
Tiller Bar with Lock Knob |
Vertical Movement (degrees) |
70 below to 80 above horizontal |
Safety Shutoff |
No Safety Shutoff |
Pressure Relief Valve |
No PRV |
Valve Design |
No Valve |
Finish |
Powdercoated American Red |
Certifications |
N/A |
|
