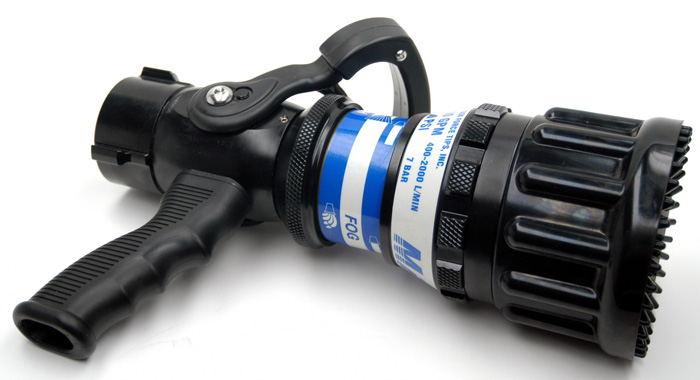

Part No:MDF18A
100 PSI (7 bar) MAX-MATIC W/GRIP 1.5" NH (38mm) Automatic pressure control with a flow capacity of 100-500 gpm (400-2000 l/min). The nozzle operates at a standard 100 psi (7 bar). Water pattern adjusts from straight stream to a 120 degree wide fog. Further rotation opens the nozzle to flush 3/8" (1 cm) debris without shutting down. 1.5" (38 mm) ball-type shutoff valve with built-in pistol grip mounted below the valve body, six detent flow positions, optional colored pistol grips, and handle covers. 1.5" NH (38mm) rocker lug full-time swivel coupling. All lightweight materials.
Weight: 8.6 lbs (3.9 kg)
|
|
|
|
Flow Control Method |
Automatic (constant pressure, constant gallonage, flow does not change with pattern) |
Flow Rate |
100-500 gpm (400-2000 l/min) |
Coupling Size |
1.5 inch (38mm) |
Coupling Style (Nozzles) |
Rocker |
Coupling Swiveling/Rigid (Nozzles) |
Swivel (full time, even after tightening) |
Connection Type |
NH Female |
Pressure |
100 psi (7bar) |
Nozzle Body Style |
Nozzle with shutoff and pistol grip |
Valve Design |
Ball Valve (Delrin/Acetal) |
Valve Actuation Method |
Horseshoe (Injection Molded Nylon w/ Colored Handle) |
Fog Pattern Method |
Molded Rubber Teeth (fixed) |
Nozzle Bumper Material |
Rubber - press fit |
Certifications |
N/A |
|
