Product Details

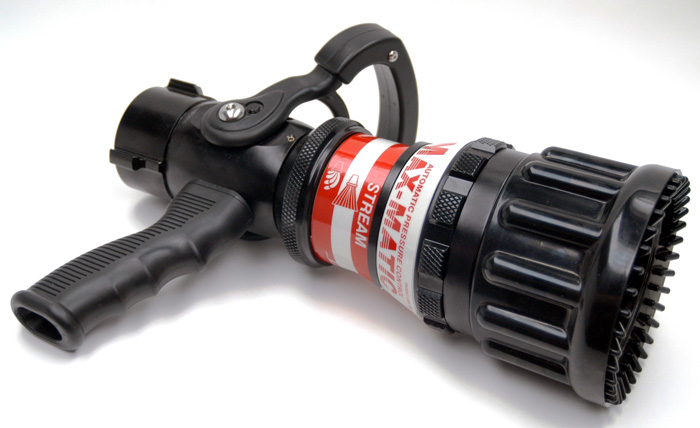

MDF17A
80 PSI (6 bar) - LOW PRESSURE VERSION


Part No:MDF17A


  Details
80 PSI (6 bar) - LOW PRESSURE VERSION
Same as MDF18A, but operates at a low pressure of approximately 80 psi (6 bar), with a 1.5" (38mm) rocker lug full-time swivel coupling.

Weight: 8.6 lbs (3.9 kg)

Flow Control Method Automatic (constant pressure, constant gallonage, flow does not change with pattern)
Flow Rate 100-500 gpm (400-2000 l/min)
Coupling Size 1.5 inch (38mm)
Coupling Style (Nozzles) Rocker
Coupling Swiveling/Rigid (Nozzles) Swivel (full time, even after tightening)
Connection Type NH Female
Pressure 80 psi (5.5 bar)
Nozzle Body Style Nozzle with shutoff and pistol grip
Valve Design Ball Valve (Delrin/Acetal)
Valve Actuation Method Horseshoe (Injection Molded Nylon w/ Colored Handle)
Fog Pattern Method Molded Rubber Teeth (fixed)
Nozzle Bumper Material Rubber - bonded
Certifications N/A


     Related Videos
    Pistol Grip Replacement

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Max Series

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE






   Related Product Groups

› Blitzfire Monitors

› Hurricane Monitors

› MAX-FLOW
PRODUCT SERIES OVERVIEW
•   The Max Series Handline nozzles incorporates a high volume ball style valve and handheld models include the exclusive integrated debris screen to prevent stream quality degradation. All models accept the low expansion foam attachment for increased finished foam performance with Class A and AFFF concentrates.

•   The Max Series Handline nozzles are available with 100/55psi dual pressure, or 100 or 80 psi pressure choices to meet any fire ground operational challenge. The high strength bonded rubber fog teeth provide a full filled pattern that pushes heat flame and smoke ahead and away from the firefighting team.
•   The Max Series Handline nozzles come standard with reflective labeling, as well as your choice of color coded pistol grip and shut off handle. This single or dual pressure variable gallonage nozzle series is available in tip only and valved configurations, is individually serialized, and comes with TFT’s exclusive 5 year warranty.
