Product Details
MDF12A

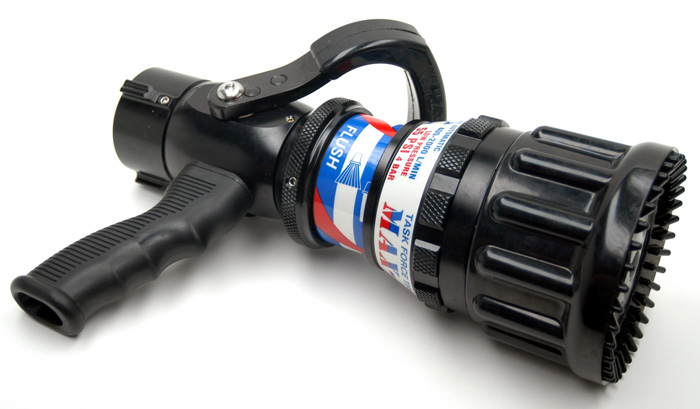

MAX-FORCE W/GRIP 1.5" NH (38mm)


Part No:MDF12A


  Details
MAX-FORCE W/GRIP 1.5" NH (38mm)
Automatic pressure control with a flow capacity of 100-500 gpm (400-2000 l/min). The nozzle may be switched between standard 100 psi (7 bar) and a low pressure mode by twisting a knob on the front of the nozzle. The nozzle flows 250 gpm (950 l/min) at about 55 psi (4 bar) in the low pressure setting. Water pattern adjusts from straight stream to a 120 degree wide fog. Further rotation opens the nozzle to flush 3/8" (1 cm) debris without shutting down. 1.5" (38mm) ball-type shutoff valve with built-in pistol grip mounted below the valve body, six detent flow positions, optional colored pistol grips and handle covers. 1.5" NH (38mm) rocker lug full-time swivel coupling is standard. All lightweight materials.

Weight: 8.6 lbs (3.9 kg)

Flow Control Method Automatic (constant pressure, constant gallonage, flow does not change with pattern)
Flow Rate 100-500 gpm (400-2000 l/min)
Coupling Size 1.5 inch (38mm)
Coupling Style (Nozzles) Rocker
Coupling Swiveling/Rigid (Nozzles) Swivel (full time, even after tightening)
Connection Type NH Female
Pressure 55 & 100 psi (3 & 7 bar)
Nozzle Body Style Nozzle with shutoff and pistol grip
Valve Design Ball Valve (Delrin/Acetal)
Valve Actuation Method Horseshoe (Injection Molded Nylon w/ Colored Handle)
Fog Pattern Method Molded Rubber Teeth (fixed)
Nozzle Bumper Material Rubber - press fit
Certifications N/A


     Related Videos
    Dual Pressure Knob Replacement

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Pistol Grip Replacement

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    How to Adjust a TFT Slide Valve

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Max Series

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE






   Related Product Groups

› Blitzfire Monitors

› Hurricane Monitors

› MAX-FLOW
PRODUCT SERIES OVERVIEW
•   The Max Series Handline nozzles incorporates a high volume ball style valve and handheld models include the exclusive integrated debris screen to prevent stream quality degradation. All models accept the low expansion foam attachment for increased finished foam performance with Class A and AFFF concentrates.

•   The Max Series Handline nozzles are available with 100/55psi dual pressure, or 100 or 80 psi pressure choices to meet any fire ground operational challenge. The high strength bonded rubber fog teeth provide a full filled pattern that pushes heat flame and smoke ahead and away from the firefighting team.
•   The Max Series Handline nozzles come standard with reflective labeling, as well as your choice of color coded pistol grip and shut off handle. This single or dual pressure variable gallonage nozzle series is available in tip only and valved configurations, is individually serialized, and comes with TFT’s exclusive 5 year warranty.
