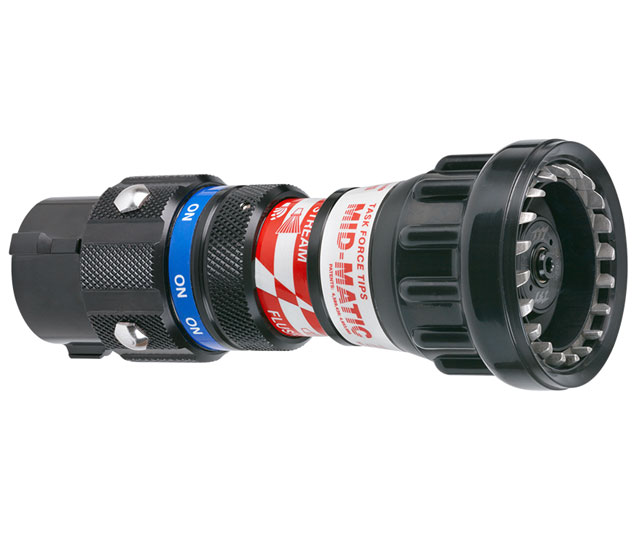

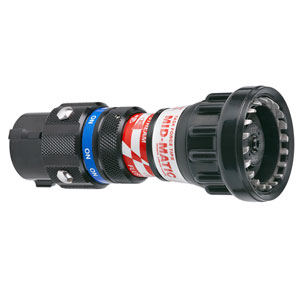

HML-STOS
LOW PRESSURE 75 PSI VERSION.


Part No:HML-STOS


 Details
LOW PRESSURE 75 PSI VERSION.
Same as HM-STO above, but operates at a lower pressure of approximately 75 psi (5 bar). Flow range is 70-200 gpm (260-760 l/min).

Weight: 3.6 lbs ( kg)

Flow Control Method Automatic (constant pressure, constant gallonage, flow does not change with pattern)
Flow Rate 70-200 gpm (260-760 l/min)
Coupling Size 1.5 inch (38mm)
Coupling Style (Nozzles) Rocker
Coupling Swiveling/Rigid (Nozzles) Rigid
Connection Type NH Female
Pressure 75 psi (5bar)
Nozzle Body Style Tip with shutoff
Valve Design Twist Style (slide valve)
Valve Actuation Method Rotational
Fog Pattern Method stainless steel teeth (spinning)
Nozzle Bumper Material Rubber - bonded
Certifications NFPA/FM


     Related Videos
    Mid-Matic/Mid-Force

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Mid-Matic Series

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE


    Visual Nozzle Inspection

    COPY URL LINK BELOW AND PASTE IT INTO AN EMAIL TO SHARE






   Related Product Groups

EDUCTORS


•   The Mid-Matic handline nozzle incorporates TFT’s unique stainless steel slide valve for turbulence free flow control and includes the exclusive integrated debris screen to prevent stream quality degradation. All models accept low and multi-expansion foam attachments for increased finished foam performance.

•   The Mid-Matic handline nozzle is available with 100, 75 or 55psi operational pressure choices to meet any fire ground operational challenge. All models are available with your choice of high strength bonded rubber fog teeth which provide a full filled pattern, or the wide protective pattern of TFT’s unique stainless steel spinning teeth design.

•   The Mid-Matic handline nozzle comes standard with reflective labeling as well as your choice of color coded pistol grip and shut off handle. This constant pressure variable gallonage nozzle series is available in tip only and shut off configurations, is individually serialized, and comes with TFT’s exclusive 5 year warranty.
