| B-TO |
|
ULTIMATIC TIP 1.0" NH (25mm) |
Part No:B-TO

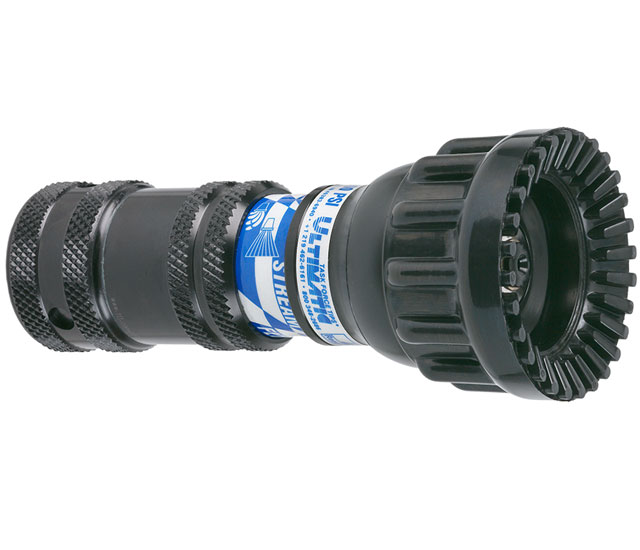

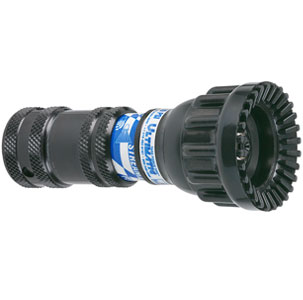

ULTIMATIC TIP 1.0" NH (25mm)
Full automatic 100 psi (7 bar) nozzle with a flow range of 10-125 gpm (40-500 l/min). Tip does not shut off and must be used with a separate valve or valved playpipe. 1.0" (25mm) rigid knurled coupling is standard
Weight: 1.4 lbs (0.7 kg)
|
|
|
 |
|
| Flow Control Method |
Automatic (constant pressure, constant gallonage, flow does not change with pattern) |
| Flow Rate |
10-125 gpm (40-500 l/min) |
| Coupling Size |
1.0 inch (25mm) |
| Coupling Style (Nozzles) |
Knurled (Diamond pattern) |
| Coupling Swiveling/Rigid (Nozzles) |
Rigid |
| Connection Type |
NH Female |
| Pressure |
100 psi (7bar) |
| Nozzle Body Style |
Tip with no shutoff |
| Valve Design |
No Valve |
| Valve Actuation Method |
No Actuation Method |
| Nozzle Bumper Material |
Rubber - bonded |
| Fog Pattern Method |
Molded Rubber Teeth (fixed) |
| Operation Energy Source |
Manual |
| Electrical Connection Method |
N/A |
|
• The Ultimatic nozzle incorporates TFT’s unique stainless steel slide valve for turbulence free flow control and includes the exclusive integrated debris screen to prevent stream quality degradation. All models accept low and multi-expansion foam attachments for increased finished foam performance.
|
• The Ultimatic nozzle is available with 100 or 75 psi operational pressure choices to meet any fire ground operational challenge. The high strength bonded rubber fog teeth provide a full filled pattern that pushes heat flame and smoke ahead and away from the firefighting team.
|
• The Ultimatic nozzle comes standard with reflective labeling as well as your choice of color coded pistol grip and shut off handle. This constant pressure variable gallonage nozzle series is available in tip only and shut off configurations, is individually serialized, and comes with TFT’s exclusive 5 year warranty.
|
