Packages

Crossfire Pumper Package
CROSSFIRE MONITOR Top 2.5”NH (65mm) Outlet can be connected to either a portable base or a truck with the adapters on page 64 or a TFT Extend-A-Gun with XL outlet. The connection is easy, positive, and visually verified. When in use, the release is “locked out” by water pressure. The waterway is a large 3.25” (83mm) which lets the CROSSFIRE deliver up to 1250 gpm (4500 l/min) with low friction loss. Horizontal rotation is securely locked with a simple lever, and position can be visually confirmed. Only seven (7) turns of the handwheelchange the discharge elbow from vertical to the stop elevation. Includes highly visible pressure gauge and built-in automatic drain valve. Standard outlet thread is male 2.5” NH (65mm).

Select a Crossfire Pumper Package:
XFC-62 | XFC-71 | XFC-72 | XFC-73

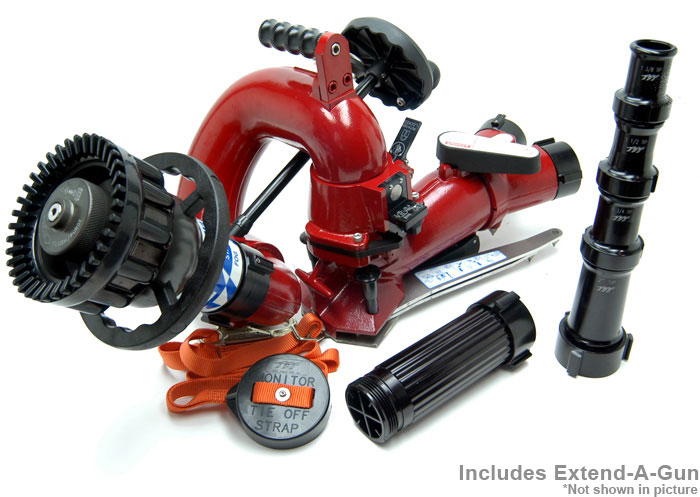

XFC-62
Crossfire Monitor, SAFE-TAK, Extend-A-Gun, MasterStream, Quad Stack Tips, Stream Straightener


Crossfire Monitor, SAFE-TAK, Extend-A-Gun, MasterStream, Quad Stack Tips, Stream Straightener

Included:



XF-B

STORAGE BRACKET; CROSSFIRE

A choice of:



XFH-1NL

SAFE-TAK BASE 3.0"NH FEMALE SINGLE INLET, 1250 GPM VERSION



XFH-1NN

SAFE-TAK BASE 3.5"NH FEMALE SINGLE INLET, 1250 GPM VERSION



XFH-1NP

SAFE-TAK BASE 4.0"NH FEMALE SINGLE INLET, 1250 GPM VERSION



XFH-1NR

SAFE-TAK BASE 4.5"NH FEMALE SINGLE INLET, 1250 GPM VERSION



XFH-1SP

SAFE-TAK BASE - 4.0" STORZ SINGLE INLET 1250 GPM VERSION



XFH-1ST

SAFE-TAK BASE - 5.0"STORZ SINGLE INLET 1250 GPM VERSION



XFH-1SX

SAFE-TAK BASE - 6.0" STORZ SINGLE INLET- 1250 GPM VERSION



XFH-2BIC

SAFE-TAK BASE - 2.5"BIC MALE INLETS DOUBLE INLET - 1250 GPM VERSION



XFH-2BJ

SAFE-TAK BASE - 2.5"BSP FEMALE INLETS DOUBLE INLET - 1250 GPM VERSION



XFH-2NJ

SAFE-TAK BASE - 2.5" FEMALE INLETS DOUBLE INLET - 1250 GPM VERSION



XFH-2SL

SAFE-TAK BASE - 75MM STORZ (3") DOUBLE INLET - 1250 GPM VERSION
A choice of:



M-R1000-NJ

MASTER STREAM 1000 W/HALO AUTO 2.5"NH 150-1000 GPM @ 100 PSI



M-R1250S-BJ

MASTER STREAM 1250S W/HALO AUTO 2.5"BSP 150-1250 GPM @ 100 PSI



M-R1250S-NJ

MASTER STREAM 1250S W/HALO AUTO 2.5"NH 150-1250 GPM @ 100 PSI



M-RF1000-NJ

MASTER STREAM 1000 W/HALO FIXED 2.5" USER SPECIFIED K FACTOR 50-105



M-RS1000-NJ

MASTER STREAM 1000 W/HALO SELECT 2.5" 250-350-500-750-1000 GPM AT 100 PSI



M-RS4000-BJ

MASTER STREAM 4000 W/HALO SELECT 2.5"BSP 1000-1500-2000-2500-3000-4000L/MIN @7BAR
A choice of:



XG12PL-XL

EXTEND-A-GUN 12"- NPT X CROSSFIRE OUTLET 12 VDC RELAY



XG12PL-XL-24

EXTEND-A-GUN 12"-NPT X CROSSFIRE OUTLET 24 VDC RELAY



XG12VL-XL

EXTEND-A-GUN 12"- VIC X CROSSFIRE OUTLET 12 VDC RELAY



XG18PL-XL

EXTEND-A-GUN 18"- NPT X CROSSFIRE OUTLET 12 VDC RELAY



XG18PL-XL-24

EXTEND-A-GUN 18"- NPT X CROSSFIRE OUTLET 24 VDC RELAY



XG18VL-XL

EXTEND-A-GUN 18"- VIC X CROSSFIRE OUTLET 12 VDC RELAY



XG18VL-XL-24

EXTEND-A-GUN 18"- VIC X CROSSFIRE OUTLET 24 VDC RELAY
A choice of:



XF-SS10

STREAM STRAIGHTENER 10" 2.5"NH THREADS



XF-SS5

STREAM STRAIGHTENER 5" 2.5"NH THREADS



XF-SS5-BJ

STREAM STRAIGHTENER 5" 2.5"BSP THREADS

A choice of:



XFT-BJ

CROSSFIRE MONITOR TOP 2.5"BSPM OUTLET



XFT-NJ

CROSSFIRE MONITOR TOP 2.5"MALE OUTLET

Included:



MST-4NJ

4 STACKED TIPS 2.5"FEMALE 1-3/8 1-1/2 1-3/4 AND 2 TIPS
A choice of:



XGB-13

BRACKET SET 3" TUBE/SADDLE EXTEND-A-GUN 3"



XGB-23

BRACKET SET 3" PLATE/SADDLE EXTEND-A-GUN 3"



XGB-33

BRACKET SET 3" SADDLE/SADDLE EXTEND-A-GUN 3"

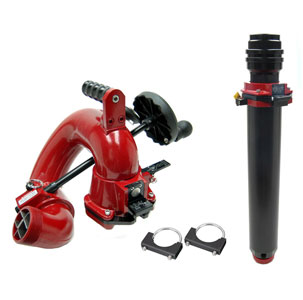

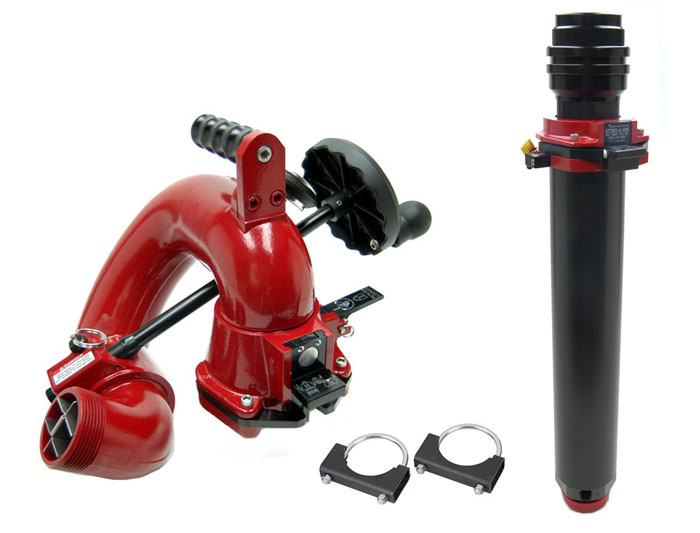

XFC-71
Pumper Combination Package (Crossfire & Extend-A-Gun)


Pumper Combination Package (Crossfire & Extend-A-Gun)

A choice of:



XFT-BJ

CROSSFIRE MONITOR TOP 2.5"BSPM OUTLET



XFT-NJ

CROSSFIRE MONITOR TOP 2.5"MALE OUTLET

A choice of:



XG12PL-XL

EXTEND-A-GUN 12"- NPT X CROSSFIRE OUTLET 12 VDC RELAY



XG12PL-XL-24

EXTEND-A-GUN 12"-NPT X CROSSFIRE OUTLET 24 VDC RELAY



XG12VL-XL

EXTEND-A-GUN 12"- VIC X CROSSFIRE OUTLET 12 VDC RELAY



XG18PL-XL

EXTEND-A-GUN 18"- NPT X CROSSFIRE OUTLET 12 VDC RELAY



XG18PL-XL-24

EXTEND-A-GUN 18"- NPT X CROSSFIRE OUTLET 24 VDC RELAY



XG18VL-XL

EXTEND-A-GUN 18"- VIC X CROSSFIRE OUTLET 12 VDC RELAY



XG18VL-XL-24

EXTEND-A-GUN 18"- VIC X CROSSFIRE OUTLET 24 VDC RELAY
A choice of:



XGB-13

BRACKET SET 3" TUBE/SADDLE EXTEND-A-GUN 3"



XGB-23

BRACKET SET 3" PLATE/SADDLE EXTEND-A-GUN 3"



XGB-33

BRACKET SET 3" SADDLE/SADDLE EXTEND-A-GUN 3"

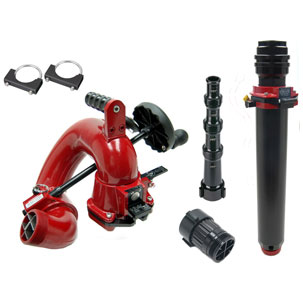

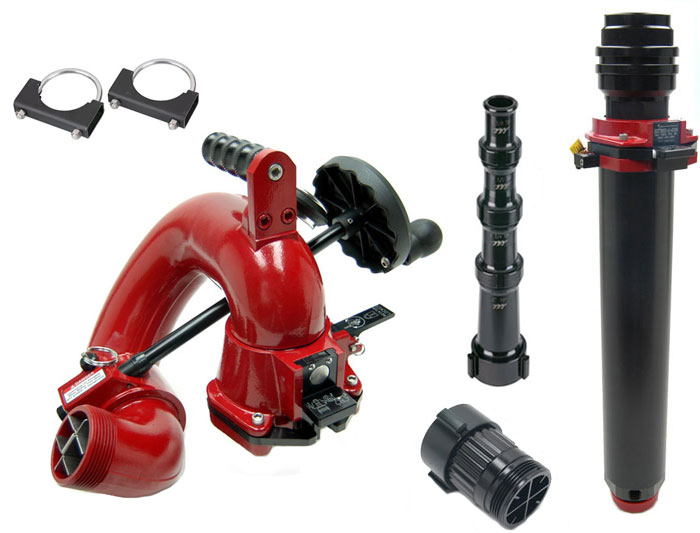

XFC-72
Pumper Combination Package (Crossfire & Extend-A-Gun & Stream Straightener)


Pumper Combination Package (Crossfire & Extend-A-Gun & Stream Straightener)

A choice of:



XFT-BJ

CROSSFIRE MONITOR TOP 2.5"BSPM OUTLET



XFT-NJ

CROSSFIRE MONITOR TOP 2.5"MALE OUTLET

A choice of:



XG12PL-XL

EXTEND-A-GUN 12"- NPT X CROSSFIRE OUTLET 12 VDC RELAY



XG12VL-XL

EXTEND-A-GUN 12"- VIC X CROSSFIRE OUTLET 12 VDC RELAY



XG18PL-XL

EXTEND-A-GUN 18"- NPT X CROSSFIRE OUTLET 12 VDC RELAY



XG18PL-XL-24

EXTEND-A-GUN 18"- NPT X CROSSFIRE OUTLET 24 VDC RELAY



XG18VL-XL

EXTEND-A-GUN 18"- VIC X CROSSFIRE OUTLET 12 VDC RELAY



XG18VL-XL-24

EXTEND-A-GUN 18"- VIC X CROSSFIRE OUTLET 24 VDC RELAY
A choice of:



XGB-13

BRACKET SET 3" TUBE/SADDLE EXTEND-A-GUN 3"



XGB-23

BRACKET SET 3" PLATE/SADDLE EXTEND-A-GUN 3"



XGB-33

BRACKET SET 3" SADDLE/SADDLE EXTEND-A-GUN 3"
Included:



MST-4NJ

4 STACKED TIPS 2.5"FEMALE 1-3/8 1-1/2 1-3/4 AND 2 TIPS
A choice of:



XF-SS10

STREAM STRAIGHTENER 10" 2.5"NH THREADS



XF-SS5

STREAM STRAIGHTENER 5" 2.5"NH THREADS



XF-SS5-BJ

STREAM STRAIGHTENER 5" 2.5"BSP THREADS

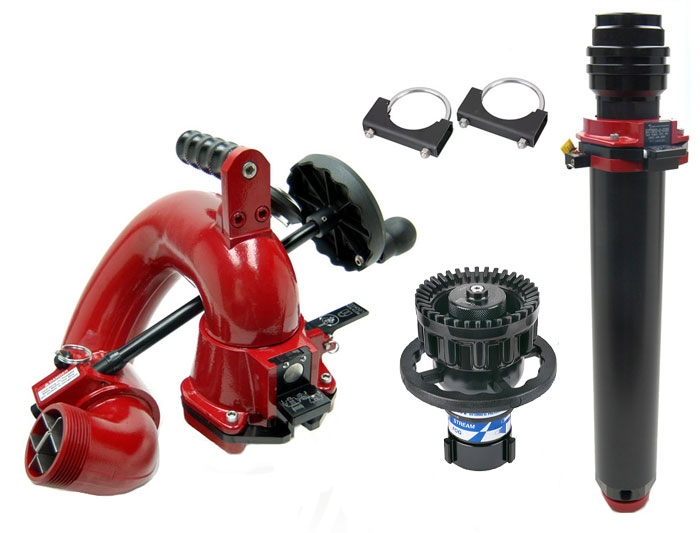

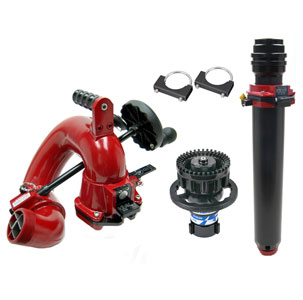

XFC-73
Pumper Combination Package (Crossfire & Extend-A-Gun, MasterStream Nozzle)


Pumper Combination Package (Crossfire & Extend-A-Gun, MasterStream Nozzle)

A choice of:



XFT-BJ

CROSSFIRE MONITOR TOP 2.5"BSPM OUTLET



XFT-NJ

CROSSFIRE MONITOR TOP 2.5"MALE OUTLET

A choice of:



XG12PL-XL

EXTEND-A-GUN 12"- NPT X CROSSFIRE OUTLET 12 VDC RELAY



XG12VL-XL

EXTEND-A-GUN 12"- VIC X CROSSFIRE OUTLET 12 VDC RELAY



XG18PL-XL

EXTEND-A-GUN 18"- NPT X CROSSFIRE OUTLET 12 VDC RELAY



XG18PL-XL-24

EXTEND-A-GUN 18"- NPT X CROSSFIRE OUTLET 24 VDC RELAY



XG18VL-XL

EXTEND-A-GUN 18"- VIC X CROSSFIRE OUTLET 12 VDC RELAY



XG18VL-XL-24

EXTEND-A-GUN 18"- VIC X CROSSFIRE OUTLET 24 VDC RELAY
A choice of:



XGB-13

BRACKET SET 3" TUBE/SADDLE EXTEND-A-GUN 3"



XGB-23

BRACKET SET 3" PLATE/SADDLE EXTEND-A-GUN 3"



XGB-33

BRACKET SET 3" SADDLE/SADDLE EXTEND-A-GUN 3"
A choice of:



M-R1250S-BJ

MASTER STREAM 1250S W/HALO AUTO 2.5"BSP 150-1250 GPM @ 100 PSI



M-R1250S-NJ

MASTER STREAM 1250S W/HALO AUTO 2.5"NH 150-1250 GPM @ 100 PSI



M-RF1000-NJ

MASTER STREAM 1000 W/HALO FIXED 2.5" USER SPECIFIED K FACTOR 50-105



M-RS1000-NJ

MASTER STREAM 1000 W/HALO SELECT 2.5" 250-350-500-750-1000 GPM AT 100 PSI



M-R1000-NJ

MASTER STREAM 1000 W/HALO AUTO 2.5"NH 150-1000 GPM @ 100 PSI



M-RS4000-BJ

MASTER STREAM 4000 W/HALO SELECT 2.5"BSP 1000-1500-2000-2500-3000-4000L/MIN @7BAR



M-R1000-BJ

MASTER STREAM 1000 W/HALO AUTO 2.5"BSP 150-1000 GPM @ 100 PSI
