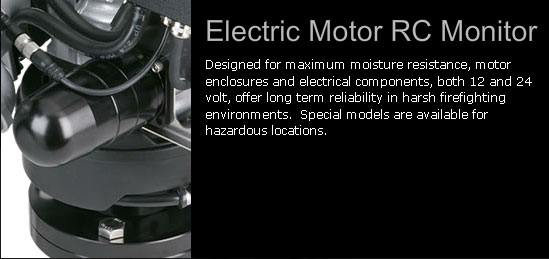

The Monsoon RC is an electric remote controlled monitor that flows up to 2000 gpm (7,600 l/min). Maximum operating pressure is 200 psi (14 bar). Unique patent pending segmented waterway has only 15 psi (1 bar) friction loss at 2000 gpm. Water makes very few turns as it travels through the monitor resulting in low friction loss and a far reaching effective stream. Elevation range is 90 degrees above horizontal to 45 degrees below. Field changeable elevation travel stops at 45 degrees above, 30 degrees above, and 30 degrees below horizontal. The manual model has 360 degree continuous horizontal rotation with fi eld changeable stops at 45, 90, and 135 degrees either side of a center position. It is also available in a manually operated model. Click Here for more details the Monsoon RC [ Y4-E11A ]

Further specifications are shown below:

Manual
Electric

US
METRIC
US
METRIC
Weight
25 lbs
11.4 kg
37 lbs
16.8 kg
Min. Flow Area 4" Inlet
8.3 in x in
24.5 cm x cm
8.3 in x in
24.5 cm x cm
Min. Flow Area 3" Inlet
7.07 in x in
45.6 cm x cm
7.07 in x in
45.6 cm x cm
Max Flow
2000 gpm
7600 l/min
2000 gpm
7600 l/min
Max Operating Pressure
200 psi
14 bar
200 psi
14 bar

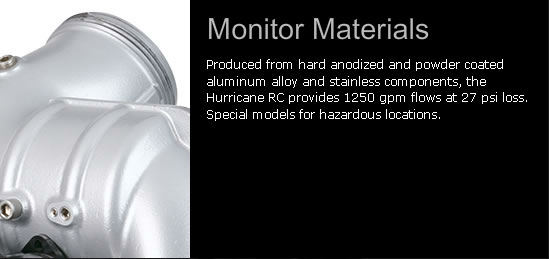

Material Used
ANSI A356.0-T6 Aluminum, Stainless, Nylon
Maximum Torque Elevation
80 ft•lbs
110 n•m
Maximum Torque Horizontal
60 ft•lbs
80 n•m
Speed Elevation 6 deg/sec
Speed Horizontal
12 deg/sec
